Maya Python Programming

import sys
sys.append("/path_to_scripts_folder")

import site
site.addsitedir("path_to_pth_file_folder") # Warning: should be the folder path

from maya import cmds, standalone
standalone.initialize() # this is only needed in batch mode

cmds.help('polyCube', doc=True, language='python')

import mySuperScript
reload(mySuperScript)

from maya import mel

def run_mel_script():
    mel.eval("source myMelScript;")
    mel.eval("myMelScript;")

# create a sphere
transform_node, shape_node = cmds.polySphere()

vertex_number = cmds.polyEvaluate(shape_node, vertex=True)
edge_number = cmds.polyEvaluate(shape_node, edge=True)
face_number = cmds.polyEvaluate(shape_node, face=True)

# create a sphere
transform_node, shape_node = cmds.polySphere()

vertex_number = cmds.polyEvaluate(shape_node, vertex=True)
edge_number = cmds.polyEvaluate(shape_node, edge=True)
face_number = cmds.polyEvaluate(shape_node, face=True)

# create a sphere
transform_node, shape_node = cmds.polySphere()

cmds.select(shape_node + ".vtx[0:5]", replace=True) # vertex
cmds.select(shape_node + ".e[0:5]", replace=True) #edge
cmds.select(shape_node + ".f[0:5]", replace=True) #face

# create a sphere
transform_node, shape_node = cmds.polySphere()

cmds.select(shape_node + ".e[0]", replace=True)
cmds.move(1.0, 2.0, 3.0, relative=True)

# alternative use polyMoveVertex
cmds.polyMoveVertex(shape_node + ".e[0]", t=[1.0, 2.0, 3.0]) # this is slower than cmds.move

cmds.ls(selection=True) # select a sphere
cmds.xform(pivot=(0,0,0)) # move pivot at origin
cmds.makeIdentity(apply=True) # freeze transforms so object starts at 0, 0, 0

cmds.listRelatives(children=True, allDescendents=True) # get child nodes
cmds.listRelatives(parent=True) # get direct parent
cmds.listRelatives(parent=True, fullPath=True) # get fullpath

points = []
points.append( (-0.5, 0 , 0) )
points.append( (   0, 0 , 0) )
points.append( ( 0.5, 0 , 0) )

cmds.curve(degree=1, p=points)

points = []
points.append( (-0.5, 0 , 0) )
points.append( (   0, 0 , 0) )
points.append( ( 0.5, 0 , 0) )
points.append( (-0.5, 0 , 0) )

cmds.polyCreateFacet(p=points)

points = []
points.append( (-0.5, 0 , 0) )
points.append( (   0, 0 , 0) )
points.append( ( 0.5, 0 , 0) )
points.append( (-0.5, 0 , 0) )

cmds.polyCreateFacet(p=points)
# triangulate newly created face
cmds.polyTriangulate()

# quadrangulate from a triangulated face, Warning this doesn't always works well
cmds.polyQuad()

f1 = [ (0, 0 , 0), ( 1, 0 , 0), ( 1, 1 , 0), (0, 1 , 0)]
f2 = [ (0, 0 , 0), ( 0, 0 ,1), ( 0, 1 , 1), (0, 1 , 0)]
f3 = [ (0, 0 , 1), (0, 1 , 1), ( 1, 1 ,0), (1, 0 , 0)]

faces = [
    cmds.polyCreateFacet( p=f1, texture=1),
    cmds.polyCreateFacet( p=f2, texture=1),
    cmds.polyCreateFacet( p=f3, texture=1)
    ]


cmds.select( faces[1], faces[2], faces[3], replace=True )

# unite polygons
obj = cmds.polyUnite()

# merge redundant vertexes
cmds.select(obj[0] + ".vtx[:]")
cmds.polyMergeVertex(distance=0.0001)

# get all obj non default attributes
custom_user_attrs = cmds.listAttr(obj, userDefined=True)

# add a new custom attr
my_new_attr = "custom_attr"
if my_new_attr not in custom_user_attrs:
    cmds.addAttr(
      obj,
      longName=my_new_attr,
      keyable=True
    )

# set attr
my_new_value = 3
cmds.setAttr( "{}.{}".format(obj, my_new_attr), my_new_value)

# get attr
my_new_Attr_value = cmds.getAttr("{}.{}".format(obj, my_new_attr))

history = cmds.listHistory(obj) # Not super reliable as it can be deleted by user
cmds.delete(ch=True) # Delete construction history

transform, shape = cmds.ls(selection=True)
uvs = cmds.polyEvaluate(shape, uvComponent=True)
uvPos = cmds.polyEditUV(shape + ".map[0]", query=True)

print "Num UVs => {} \nPos uv => {}".format(str(uvs), uvPos)

elt1 = cmds.polyListComponentConversion(shape + ".e[0]", fromEdge=True, toUV=True) # retrieve edge uv
elt2 = cmds.polyListComponentConversion(shape + ".e[0]", fromEdge=True, toVertex=True) # retrieve edge vertexes

cmds.polyProjection(shape + ".f[*]", type="planar") # type value could be either planar / cylindrical / spherical
cmds.polyProjection(shape + ".f[0:50]", shape + ".f[75:80]", type="planar") # could receive several inputs

# Creating a toon shader network
shader_node = cmds.shadingNode('blinn', asShader=True)
ramp_node = cmds.shadingNode('ramp', asTexture=True)
sample_node = cmds.shadingNode('samplerInfo', asUtility=True)

cmds.setAttr(ramp_node + ".interpolation", 0)
cmds.setAttr(ramp_node + ".colorEntryList[0].position", 0)
cmds.setAttr(ramp_node + ".colorEntryList[1].position", 0.3)

cmds.setAttr(ramp_node + ".colorEntryList[0].color", 0,0,0, type="float3") # float3 is because we provide 3 floats input
cmds.setAttr(ramp_node + ".colorEntryList[1].color", 1,0,0, type="float3") # float3 is because we provide 3 float input

cmds.connectAttr(sample_node + ".facingRatio", ramp_node + ".vCoord")
cmds.connectAttr(ramp_node + ".outColor", shader_node + ".color")

# Creating a File network
file_tex = cmds.shadingNode('file', asTexture=True)
place_tex = cmds.shadingNode('place2dTexture', asUtility=True)

cmds.defaultNavigation(connectToExisting=True, source=place_tex, destination=file_tex)

# following previous File network code
cmds.disconnectAttr(place_tex + ".offset", file_tex + ".offset")

def is_geo_generator(obj):
    geo_type = ["mesh", "nurbsSurface", "subdiv"]
    shape = cmds.listRelatives(obj, shapes=True)[0]
    shape_type = cmds.nodeType(shape) # retrieve node type where geo nodeType being in geo_type
    if shape_type in geo_type:
        return True
    return False

def is_shaded(obj):
    cmds.select(obj, replace=True)
    cmds.hyperShade(obj, shaderNetworksSelectionMaterialNodes=True)
    result = cmds.ls(selection=True)

    if result:
        return False
    return True

# Get unshaded obj
transforms = cmds.ls(type="transform")
unshaded_nodes = [ node for node in transforms if is_shaded(node) is False]

# create shader
blinn_shader = cmds.shadingNode("blinn", asShader=True)
cmds.setAttr(blinn_shader + ".color", 0, 1, 1, type="double3")

# Set shader obj
for unshaded_node in unshaded_nodes:
    cmds.select(unshaded, replace=True)
    cmds.hyperShade(assign=blinn_shader)

# following previous code
def get_obj_from_shader(shader):
    cmds.hyperShade(objects=shader)
    objects = cmds.ls(selection=True)
    return objects

blinn_shaded_nodes = get_obj_from_shader( blinn_shader )

# use a plus minus average shading node to keep an object at the center
def center():
    objs = cmds.ls(selection=True)
    if len(objs) < 3:
        cmds.error("Please select at least 3 nodes and retry!")

    center_obj = objs.pop()
    avg_node = cmds.shadingNode('plusMinusAverage', asUtility=True)
    cmds.setAttr(avg_node + ".operation", 3) #set operation to average

    px, py, pz = [0,0,0]
    for i, obj in enumerate(objs):
        cmds.connectAttr(obj + ".translateX", avg_node + ".input3D[{}].input3Dx".format(i))
        cmds.connectAttr(obj + ".translateY", avg_node + ".input3D[{}].input3Dy".format(i))
        cmds.connectAttr(obj + ".translateZ", avg_node + ".input3D[{}].input3Dz".format(i))

    cmds.connectAttr(avg_node + ".output3D.output3Dx", center_obj + ".translateX")
    cmds.connectAttr(avg_node + ".output3D.output3Dy", center_obj + ".translateY")
    cmds.connectAttr(avg_node + ".output3D.output3Dz", center_obj + ".translateZ")

cmds.select("pSphere1", "pSphere2", "pCylinder1", replace=True)
center()

root = cmds.joint(name="root", position =[2.5, -1, 0])
for i1 in range(5):
    for i2 in range(3):
        cmds.joint(name="root_finger{}_joint{}".format(i1, i2), position=(i1*2, i2*3, 0) )
    cmds.select(root, replace=True)

# cmds.pickWalk(direction="Up") # could be use to travel trhough Maya hierarchy

def set_driven_key(objs, attr, min_driver_val, max_driver_val, min_driven_val, max_driven_val):

    # set driver attr
    driver_joint = objs[0]
    driver_attr = driver_joint + attr
    original_driver_val = cmds.getAttr(driver_attr)

    childrens = cmds.listRelatives(children=True, allDescendents=True)
    for child in childrens:
        driven_attr = child + attr

        # set driven key for max and min
        cmds.setAttr(driver_attr, min_driver_val)
        cmds.setDrivenKeyframe(driven_attr, cd=driver_attr, value=min_driven_val, driver_value=min_driver_val)

        cmds.setAttr(driver_attr, max_driver_val)
        cmds.setDrivenKeyframe(driven_attr, cd=driver_attr, value=max_driven_val, driver_value=max_driver_val)

    cmds.setAttr(driver_attr, original_driver_val)

objs = cmds.ls(selection=True)
set_driven_key(
    objs=objs,
    attr=".rotateX",
    min_driver_val=0,
    max_driver_val=30,
    min_driven_val=0,
    max_driven_val=30
    )

# regular attr
cmds.addAttr(
    obj,
    shortName="my_custom_regular_attr",
    longName="my_custom_regular_attr",
    defaultValue=0,
    minValue=-1,
    maxValue=1,
    keyable=True
    )

# enum attr
cmds.addAttr(
    obj,
    shortName="my_custom_enum_attr",
    longName="my_custom_enum_attr",
    attributeType="enum",
    enumName="Val1:Val2:Val3", # enum options separated by ':'
    keyable=True
    )

# bool attr
cmds.addAttr(
    obj,
    shortName="my_custom_bool_attr",
    longName="my_custom_bool_attr",
    attributeType="bool",
    keyable=True
    )

# color attr
cmds.attr(
    obj,
    shortName="my_custom_color_attr",
    longName="my_custom_color_attr",
    attributeType="float3",
    usedAsColor=True
    )

for color in ["colorR","colorG","colorB"]:
    cmds.addAttr(
        obj,
        shortName="{}_attr".format(color),
        longName="{}_attr".format(color),
        attributeType="float",
        parent="my_custom_color_attr"
        )

attr = obj + ".rotateX"
cmds.setAttr(attr, edit=True, lock=True, keyable=True, channelBox=False)

cmds.spaceLocator(name="loc1")

loc1 = cmds.spaceLocator(name="loc1")
# ... some code
# transform loc1 position
cmds.xform(loc1, absolute=True, translation=(1,0,0))

# get loc1 position
pos = cmds.xform(loc1, query=True, translation=True, worldSpace=True)

# create a joint at this place
cmds.joint(name="joint@loc1", position=pos)

cmds.ikHandle(startJoint=hip_joint, endEffector=ankleJoint)

cmds.setAttr(joint_node + ".jointTypeX", 0) # disable rotation around x axis
cmds.setAttr(joint_node + ".jointTypeZ", 0) # disable rotation around z axis

# enable rotation on Y axis between -45 to 45 degree only
cmds.transformLimits(joint_node, rotationY=(-45, 45), enableRotationY=(1,1))

# enable rotation on Y axis between -45 degree without upper limit
cmds.transformLimits(joint_node, rotationY=(-45, 45), enableRotationY=(1,0))

# enable rotation on Y axis between any value up to 45 degree max
cmds.transformLimits(joint_node, rotationY=(0, 45), enableRotationY=(0,1))

obj = cmds.ls(selection=True)[0]
animated_attributes = cmds.listAnimatable(obj)
shot_frame_range=50

for animated_attribute in animated_attributes:

    keyframe_count = cmds.keyframe(animated_attribute, query=True, keyframeCount=True)

    if keyframe_count:
        #index flag is only used if we don't want full shot frame range
        times = cmds.keyframe(animated_attribute, query=True, index=(0,shot_frame_range), timeChange=True)
        values = cmds.keyframe(animated_attribute, query=True, index=(0,shot_frame_range), valueChange=True)

        print "{}.{}@{} = {}".format(obj, animated_attribute, times, values)

def create_anim_layer(layer_name):
    animation_layers=cmds.animLayer(query=True, root=True)

    # check if layer already exists
    if animation_layers:
        sub_anim_layers = cmds.animLayer(animation_layers, query=True, children=True)

    if sub_anim_layers and layer_name in sub_anim_layers:
        print "Error: a layer with this name already exists"
        return

    cmds.animLayer(layer_name)

# create layer
mylayer = create_anim_layer('mylayer')

# create a sphere and assigned it the layer
transform_node, shape_node = cmds.polySphere()
frame=1010
cmds.select(transform_node, replace=True)
# add all animatable attr, use attribute flag to specify the attr
cmds.animLayer(transform_node, edit=True, addSelectedObjects=True)
cmds.setKeyframe(transform_node + ".translateY", value=yVal, time=frame, animLayer="mylayer")

# set a keyframe at 1005 for tx=1
cmds.setKeyframe(
    transform_node + ".translateX",
    value=1,
    time=1005,
    inTangentType="linear", # optional
    outTangentType="linear" # optional
    )

# make a lambda function to split long name and retrieve attr name
get_attr_name = lambda longname: longname.split('.')[-1]

def transfer_anim():
    objs = cmds.ls(selection=True)

    if len(objs < 2):
        print "Error: need at least 2 items to transfer animation from 1st selected item to others"
        return

    driver = objs[0]
    animated_attributes = cmds.listAnimatable(driver)
    for animated_attribute in animated_attributes:
        keyframes = cmds.keyframe(animated_attribute, query=True, keyframeCount=True)

        if keyframes:
            cmds.copyKey(animated_attribute)
            for driven_obj in objs[1:]:
                # we can specify a animLayer flag to pasteKey to not overwrite keys data
                cmds.pasteKey(
                    driven_obj,
                    attribute= get_attr_name(animated_attribute),
                    option="replace"
                )

def make_expression(node, attr, value):
    # expression strings needs to be written with mel syntax
    return "{}.{} = {}".format(node,attr,value)

expression_str = make_expression(transform_node, "translateX", "cos(time/2)*10")
cmds.expression(string=expression_str)

# create a 3 points light rig
def create_light_rig(offset=10, rotation=30):

    # need this since cmds.spotLight returns the light instead of the transform
    keylight = cmds.listRelatives(
        cmds.spotLight(rgb=(1,1,1), name="keylight"),
        parent=True
        )[0]


    filllight = cmds.listRelatives(
        cmds.spotLight(rgb=(0.8,0.8,0.8), name="filllight"),
        parent=True
        )[0]

    backlight = cmds.listRelatives(
        cmds.spotLight(rgb=(0.2,0.2,0.2), name="backlight"),
        parent=True
        )[0]

    # keylight
    cmds.move(0,0,offset, keylight)
    cmds.move(0,0,0, keylight + ".rotatePivot")
    cmds.rotate(-rotation, rotation, 0, keylight)

    # filllight
    cmds.move(0,0,offset, filllight)
    cmds.move(0,0,0, filllight + ".rotatePivot")
    cmds.rotate(-rotation, -rotation, 0, filllight)

    # backlight
    cmds.move(0,0,offset, backlight)
    cmds.move(0,0,0, backlight + ".rotatePivot")
    cmds.rotate(180 + rotation, 0, 0, backlight)

    light_rig = cmds.group(empty=True, name="light_rig")
    for light in [keylight, filllight, backlight]:
        cmds.parent(light, light_rig)

    cmds.select(light_rig, replace=True)


create_light_rig()

class LightControllersUI():

    def __init__(self):

        self._ui_name = "Lightcontrollers"
        self.lights = []
        self.light_controls = []

        self.init_ui()

    def delete_old_windows(self):
        if cmds.window(self._ui_name, exists=True):
            cmds.deleteUI(self._ui_name)

    def init_ui(self):

        # delete old windows if one exists
        self.delete_old_windows()

        self.win = cmds.window(self._ui_name, title=self._ui_name)
        cmds.columnLayout()

        scene_lights = cmds.ls(lights=True)
        for light_index, scene_light in enumerate(scene_lights):
            self.add_light_controls(light_index, scene_light)

        cmds.showWindow(self.win)

    def update_color_slider(self, light_index):

        new_color_slider = cmds.colorSliderGrp(
            self.light_controls[light_index],
            query = True,
            rgb = True
            )

        cmds.setAttr(
            self.lights[light_index] + ".color",
            new_color_slider[0],
            new_color_slider[1],
            new_color_slider[2],
            type="float3"
            )

    def add_light_controls(self, light_index, light_shape):

        light_transform = cmds.listRelatives(light_shape, parent=True)[0]

        light_color = cmds.getAttr(light_shape + ".color")
        color_slider = cmds.colorSliderGrp(
            label = light_transform,
            rgb = light_color[0],
            changeCommand = lambda x: self.update_color_slider(light_index)
            )

        self.lights.append(light_shape)
        self.light_controls.append(color_slider)

LightControllersUI()

def create_cam_rig(offset=10):

    aim_target = cmds.spaceLocator()

    for i in range(4):
        cam = cmds.camera()
        cmds.aimConstraint(aim_target[0], cam[0], aimVector=(0,0,-1))

        pos_x = -offset if i%2 == 0 else offset
        pos_y = 6
        pos_z = -offset if i>=2 else offset

        cmds.move(pos_x, pos_y, pos_z, cam[0])

create_cam_rig()

user_workspace_dir = cmds.internalVar(userWorkspaceDir=True)
user_script_dir = cmds.internalVar(userScriptDir=True)

import maya.cmds as cmds


# fileMode flag decide what the dialog is to return.
# 0 Any file, whether it exists or not.
# 1 A single existing file.
# 2 The name of a directory. Both directories and files are displayed in the dialog.
# 3 The name of a directory. Only directories are displayed in the dialog.
# 4 Then names of one or more existing files.

## Read #######################################################################################################

basicFilter = "*.mb"
cmds.fileDialog2(fileMode=1, fileFilter=basicFilter, dialogStyle=2)

singleFilter = "All Files (*.*)"
cmds.fileDialog2(fileMode=1, fileFilter=singleFilter, dialogStyle=2)

multipleFilters = "Maya Files (*.ma *.mb);;Maya ASCII (*.ma);;Maya Binary (*.mb);;All Files (*.*)"
cmds.fileDialog2(fileMode=1, fileFilter=multipleFilters, dialogStyle=2)

multipleFilters = "Maya Files (*.ma *.mb);;Maya ASCII (*.ma);;Maya Binary (*.mb);;All Files (*.*)"
user_workspace_dir = cmds.internalVar(userWorkspaceDir=True)
cmds.fileDialog2(fileMode=1, fileFilter=multipleFilters, startingDirectory=user_workspace_dir, dialogStyle=2)
###############################################################################################################
## Write ######################################################################################################

basicFilter = "*.mb"
cmds.fileDialog2(fileMode=0, fileFilter=basicFilter, startingDirectory=user_workspace_dir, dialogStyle=2)

###############################################################################################################

# get current context
current_context = cmds.currentCtx()

# set current context
cmds.setToolTo('selectSuperContext')
cmds.setToolTo ('polySelectEditContext')
cmds.setToolTo ('polySlideEdgeContext')
cmds.setToolTo( 'moveSuperContext' )

# reset context
cmds.ctxAbort()

# be stored in a customCtx.py file in scripts folder
# to be runned from a shelftool
def startCtx():
    print ('Running init context')

def finalizeCtx():
    objs = cmds.ls(selection=True)

    x,y,z = [0,0,0]

    for obj in objs:
        pos = cmds.xform(obj, query=True, worldSpace=True, translation=True)
        x += pos[0]
        y += pos[1]
        z += pos[2]

    x /= len(objs)
    y /= len(objs)
    z /= len(objs)

    loc = cmds.spaceLocator()
    move(x,y,z,loc)

def createContext():
    toolStartStr = 'python ("customCtx.startCtx()")'
    toolFinishStr = 'python ("customCtx.finalizeCtx")'


    # i1 flag could be provided if we want an icons
    # just need 32px x 32px icon in the icon folder
    newCtx = cmds.scriptCtx(
        title="avg context",
        setNoSelectionPrompt="Select at least 2 objs",
        toolStart=toolStartStr,
        finalCommandScript=toolFinishStr,
        totalSelectionSets=1,
        setSelectionCount=2,
        setAllowExcessCount=True,
        setAutoComplete=False,
        toolCursorType="create",

    )

    cmds.setToolTo(newCtx)
createContext()

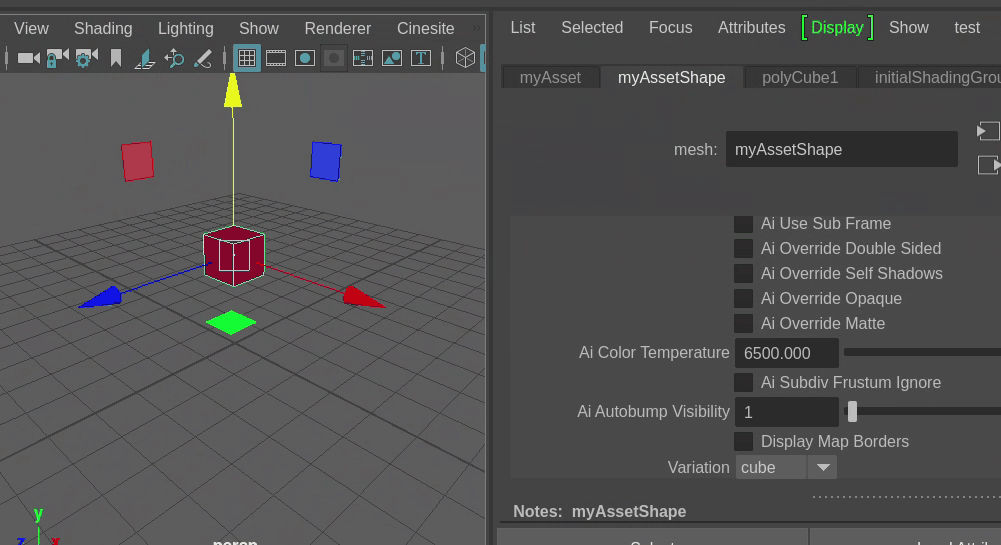

# small variation switcher proof of concept
def create_variation(variation_type):

    x,y,z = [0,0,0]
    try:
        # node should always be there
        x,y,z = cmds.xform('myAsset', query=True, absolute=True, translation=True)
        cmds.delete('myAsset')
    except:
        pass

    if variation_type == "cube":
        obj = cmds.polyCube(name="myAsset")
        variation_index = 0
    else:
        obj = cmds.polySphere(name="myAsset")
        variation_index = 1

    cmds.move(x,y,z, worldSpace=True)

    shape_node = cmds.listRelatives(shapes=True)[0]
    cmds.addAttr(
        shape_node,
        shortName="Variation",
        longName="variation",
        attributeType="enum",
        enumName="cube:sphere",
        defaultValue=variation_index,
        keyable=False
    )

    cmds.scriptJob(attributeChange=["myAsset.variation", update_variation], killWithScene=True)

def update_variation():

    variation_index = cmds.getAttr("myAssetShape.variation")
    variation_type = [ 'cube', 'sphere' ][variation_index]
    create_variation(variation_type)

# init scene
create_variation("sphere")

# retrieve all script jobs
scriptjobs = cmds.scriptJobs(listJobs=True)

# remove all script jobs => will mess with maya
cmds.scriptJob(killAll=True, force=True)

# remove all un-protected / un-permanent script jobs
cmds.scriptJob(killAll=True, force=False)

# remove specific job id
jid = cmds.scriptJob(attributeChange=["myAsset.variation", update_variation], killWithScene=True)
cmds.scriptJob(kill=jid) # would need to add force=True for protected scripts

# delete script jobs when UI is deleted with parent flag
def test_UI_scriptjobs():
    win = cmds.window(title="UI test")
    cmds.scriptJob(parent=win, event=["SelectionChanged", python_callback] )
    cmds.showWindow(win)

def embed_script():

    path = cmds.fileDialog2(
        fileMode=1, # only allow a single file selection
        fileFilter="Python files (*.py);;Mel Files (*.mel)",
        startingDirectory=cmds.internalVar(userScriptDir=True)
        )

    if not path:
        return

    sourceType = "python" if path[0].endswith(".py") else "mel"
    with open(path[0], 'r') as f:
        cmds.scriptNode(
            sourceType=sourceType,
            scriptType=2,
            beforeScript=f.read()
            )

embed_script()

# scriptType flag possible value
# Specifies when the script is executed. The following values may be used:
    # 0    Execute on demand.
    # 1    Execute on file load or on node deletion.
    # 2    Execute on file load or on node deletion when not in batch mode.
    # 3    Internal
    # 4    Execute on software render
    # 5    Execute on software frame render
    # 6    Execute on scene configuration
    # 7    Execute on time changed
